The Biggest Innovation in Electrical Safety Since 1923.
Stop Flying Blind.

Introducing the WestNet THQP-S (Series 1). The world's first headless diagnostic breaker with internal thermal meltdown protection, OLED readout, and military-grade encryption. No cloud/app required. Open Source.

SECURE ALLOCATION VIEW DATASHEET
DESIGNED IN FOREST LAWN, AB
PENDING CSA C22.2 NO. 5 / UL 489

Why Upgrade?

Standard breakers protect wires. We protect the entire connection.

OLED Diagnostics

0.91" high-contrast PMOLED display built into the face. See Amps, Volts, and Trip Codes instantly.

Thermal Guard™

Internal NTC thermistors monitor lug temperature. If a loose screw causes a glowing connection (>90°C), we trip before it burns.

Hardline PLC

HomePlug Green PHY over existing copper. Rock-solid local communication (optional ESP32 Wi-Fi module for commissioning + LAN dashboards).

HTTP/SSH Root Access

Local HTTP server or SSH to the Gateway. Ownership-first design with local integrations.

SNMP / SCADA / Modbus TCP

Industrial-grade integration. Poll status, voltage, and amps via standard protocols.

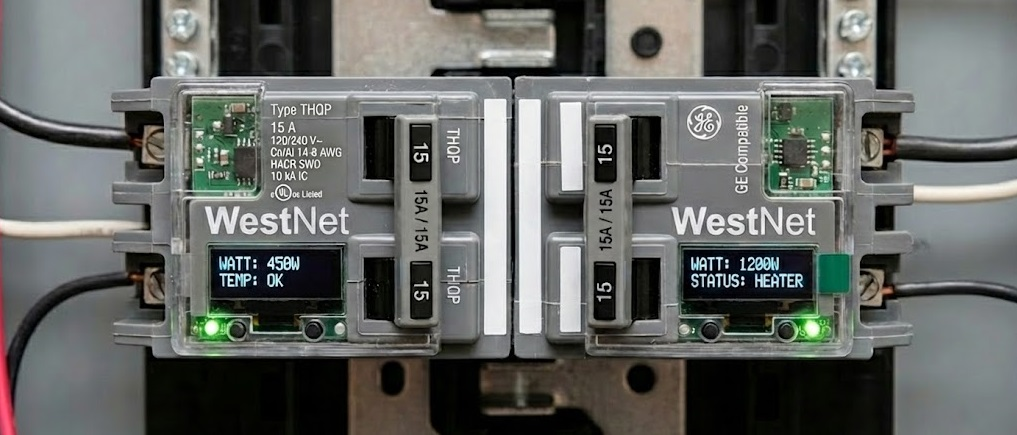

GE THQP Retrofit

1/2" wafer form factor. Designed to upgrade millions of existing GE Q-Line panels without a panel swap.

AES-128 Security

Local encryption for all packets. Your power data stays local and secure.

Remote Re-Close

Safely re-energize circuits remotely (Pro models). Includes auto-verify diagnostics before closing.

Revenue Metering ANSI C12.20

High-precision metering embedded on the breaker. Track energy usage down to the watt.

OPTIONAL WIRELESS MODULE

ESP32 Add-On Wi-Fi (Open Source)

Powerline (HomePlug Green PHY) is the default transport for rock-solid local communications. When you need wireless commissioning, a laptop/phone dashboard, or a LAN bridge in a difficult install, you can add the ESP32 module to the Sentinel™ Outlet or directly inside the THQP-S Breaker. No cloud. No app lock-in.

CAPABILITIES
AP Mode
Captive portal provisioning + local UI.
Repeater / Bridge
Optional NAT/bridge firmware profile.
LAN-Only Telemetry
HTTP/REST, MQTT, mDNS.
Local Security
WPA2 + signed OTA updates.
WIFI: AP+STA
IP: 192.168.4.1
> ESP32: READY
> MODE: AP+STA
> PORTAL: ENABLED

*Repeater/bridge behavior depends on firmware profile and local RF conditions. All modes remain LAN-only unless you route otherwise.

Wireless Modes
AP ModeProvisioning + Captive Portal
Station2.4 GHz Wi-Fi (LAN)
RepeaterOptional NAT/Bridge
PairingOne-Time Key + QR
Module Specs
PlatformESP32-Class SoC
ComputeDual-Core 32-bit (up to 240MHz)
InterfacesUART / SPI / I²C
FirmwareOpen Source (ESP-IDF/Arduino)
INTELLECTUAL PROPERTY

Zero-Trust Edge Architecture

Most smart breakers rely on the cloud. If the internet goes down, they become dumb. The WestNet THQP-S contains a Dual-Core 32-bit MCU on every single pole.

Decentralized Logic

Trip decisions are made on-device in microseconds. Thermal analysis happens locally.

Physical Isolation

High-voltage and low-voltage logic are galvanically isolated (4kV rating) to protect the MCU from surges.

SCHEMATIC: PCB-LAYER-1
Internal Schematic
> SYSTEM_CHECK: PASS

THERMAL GUARD™

The "Silent Fire" Killer.

Standard breakers detect over-current. They cannot detect a glowing connection — where a loose wire creates intense heat without drawing excess amps.

TRIP LOGIC:
  • > SENSOR: NTC Thermistor (Lug)
  • > THRESHOLD: >90°C (194°F)
  • > ACTION: Shunt Trip (Instant)
Engineering Specs Highlight

ENGINEERING VALIDATION UNIT SHOWN

ECOSYSTEM EXPANSION

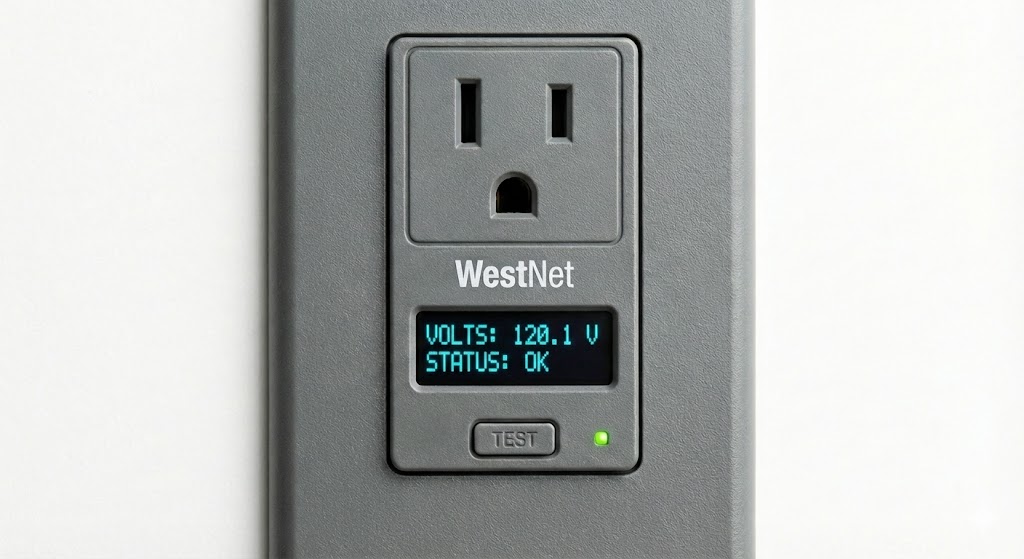

The WestNet Sentinel™ Outlet

A residential single-gang receptacle (NEMA 5-15R) that communicates with the breaker via powerline.

  • Standard 15A Duplex
  • Grey / White / Black
  • GFCI Option
  • USB-C GaN Option
VOLTS: 120.1 V
STATUS: OK
Sentinel Outlet

ENGINEERING
DATA

> DOC_VER: 2.1
> STATUS: PUBLISHED

Engineered for strict compliance with the Canadian Electrical Code (CEC) and NEC.

General Specifications
Model IDWN-THQP-15S (Series 1)
Form FactorGE THQP (1/2" Plug-On)
Ratings15A / 120/240V AC / 60Hz
Interrupt Rating (AIR)10 kAIC Symmetrical
Mechanical & Environmental
Wire CompatibilityCu/Al #14 - #8 AWG
Temp Rating60/75°C Rated
Duty RatingsHACR / SWD (Switching)
Thermal Trip Point>90°C (Terminal Temp)
Digital & Intelligence
ConnectivityHomePlug Green PHY (Default)
Data SecurityAES-128 Encryption
Optional Wi-FiESP32 Module (AP/STA)
On-Device Display0.91" PMOLED (Cyan/Black)
CompliancecULus Pending, CSA C22.2, FCC

ROADMAP TO PRODUCTION

Real-time status of the WestNet Series 1 rollout.

LIVE UPLINK
ENGINEERING PHASES
R&D / PROTOTYPING 100% COMPLETE
COMPLIANCE (UL 489 / CSA) PENDING (45%)
TOOLING & MOLDS INITIATED (15%)
SERIES 1 FUNDING GOAL

$142,050

/ $1,000,000 CAD

UPDATED: 01:54 MDT

BECOME A BACKER

Funds go directly to tooling and compliance costs.

$
ENCRYPTED SSL TRANSACTION

SECURE YOUR ALLOCATION

Demand is high. Manufacturing priority given to Calgary-based electrical contractors.
