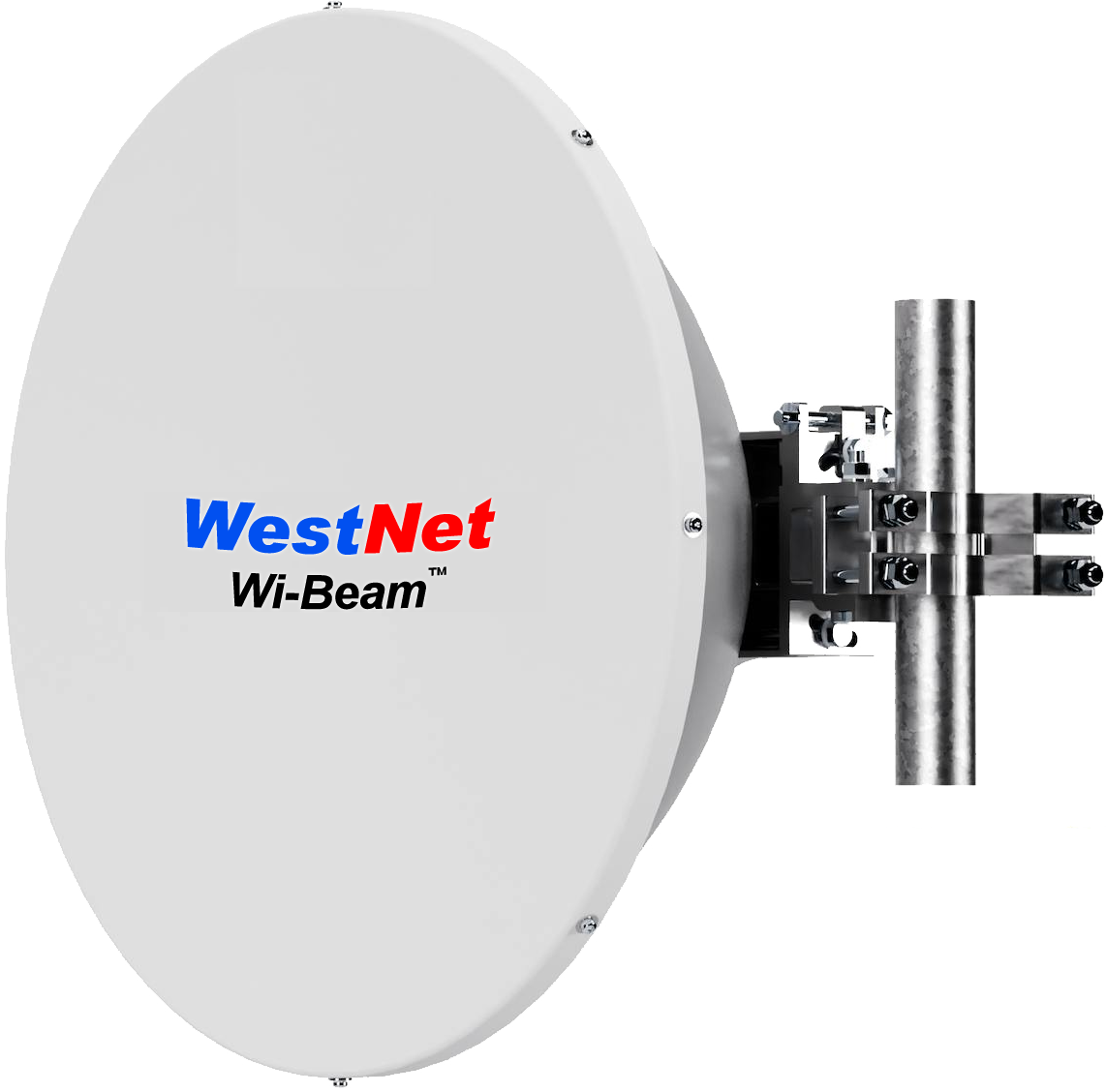

WestNet Wi-Beam 0.6m 6GHz PTP Antenna Pair
By WestNet Innovations
WestNet is a global leader in wireless telecom and aerospace
technologies. Teaming up with our Calgary-based ally WiLAN (
www.wilan.com
)—the original inventor and patent holder of Wi-Fi—we pioneered the very first
city-wide wireless network. Building on this legacy of innovation, the
WestNet Wi-Beam 0.6m 6GHz PTP Antenna Pair offers robust
throughput, minimal interference, and fast deployment—ideal for high-capacity
backhaul and mission-critical links.
| Key Specifications | |
|---|---|
| SKU | WT-06-6GHz |
| Frequency Range | 5.925 – 7.125 GHz |
| Gain | 30.7 – 32.3 dBi |
| 3 dB Beamwidth | ~3° |
| XPD | Up to 35 dB |
| VSWR | ≤ 1.3 |
| F/B Ratio | 35 dB |
| Mounting Pole Diameter | 50 – 120 mm (2.0 – 4.7") |
| Azimuth Adjustment | ±12° |
| Elevation Adjustment | ±15° |
| Wind Velocity (Operational) | 180 km/h (112 mph) |
| Wind Velocity (Survival) | 250 km/h (155 mph) |
| Net Weight | 8.0 kg (17 lb) |
- Pioneering Legacy: First city-wide Wi-Fi with WiLAN
- Global Recognition: Trusted worldwide for telecom & aerospace
- Durable Construction: One-piece reflector for lasting precision
- High-Capacity Links: Engineered for maximum throughput & reliability
- Low Interference: Excellent VSWR & XPD for cleaner signals
